SSH Into Azure VMs

Requirements

• gcloud CLI must be installed and configured

Optional

• Azure CLI - simplifies certain operations

Windows Users

Run all commands in a WSL terminal.

Finding the Target VM

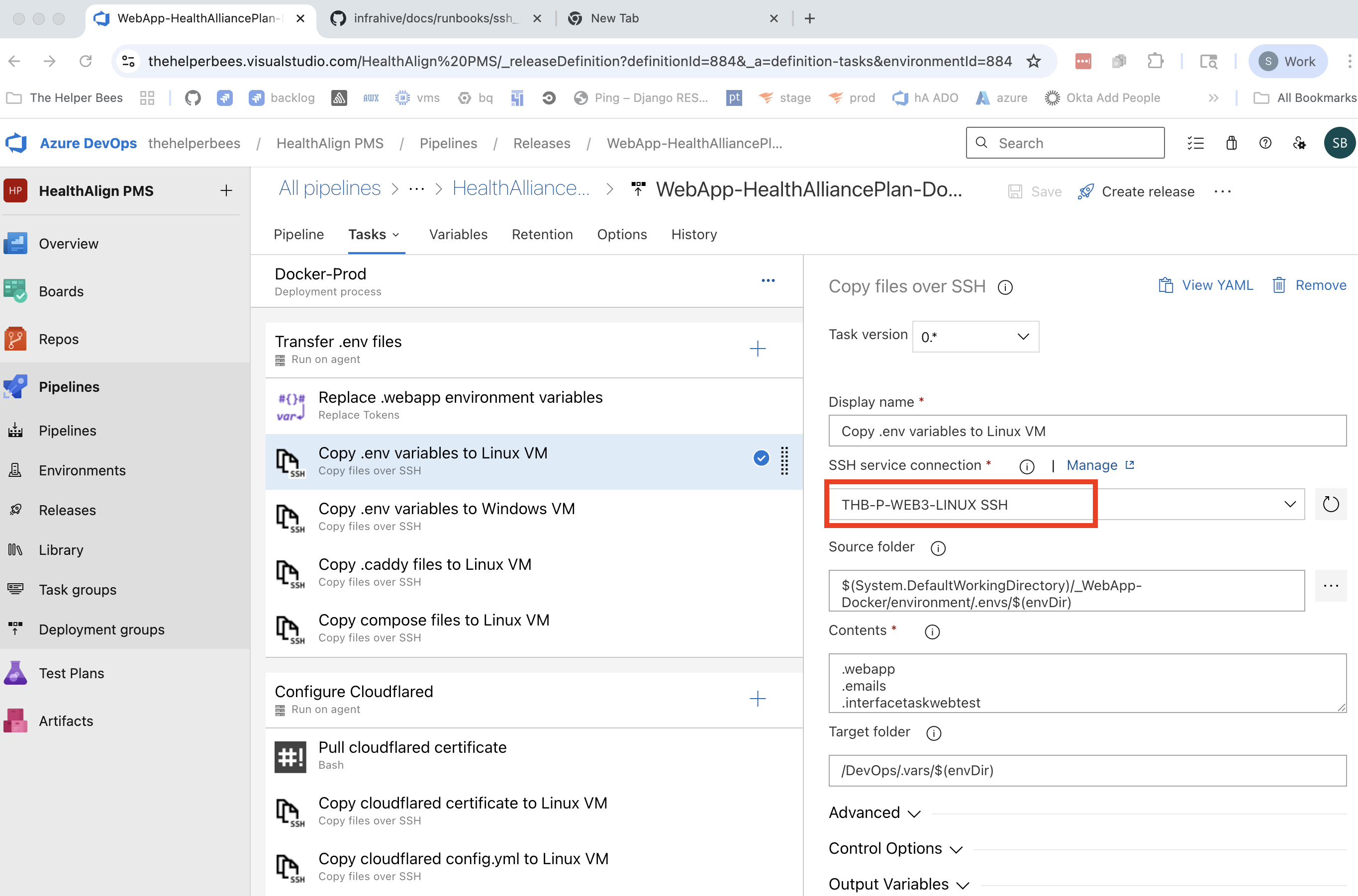

If you need to SSH into a VM for a specific application, you can identify the target VM from the app’s Azure DevOps release pipeline:

1. Navigate to Pipelines > Releases in Azure DevOps
2. Open the release pipeline for your application
3. Go to the Tasks tab and select the appropriate stage (e.g., “Docker-Prod”)
4. Click on any task that copies files to the VM (e.g., “Copy .env variables to Linux VM”)
5. Look at the SSH service connection field - this indicates the target VM

The SSH service connection name follows the pattern: THB-{ENV}-{VM_NAME}-{OS} SSH

• THB - The Helper Bees
• ENV - Environment (P for Production, N for Non-Production)
• VM_NAME - The VM identifier (e.g., WEB3)
• OS - Operating system (LINUX or WIN)

Steps

1. Determine the IP address of the machine

   az vm list-ip-addresses \
       --query "[].{Name:virtualMachine.name, PublicIP:virtualMachine.network.publicIpAddresses[0].ipAddress}" \
       --output table

Alternatively, you can simply find the right IP through the Azure Portal UI

2. Retrieve the SSH access private key

   • For Staging or UAT (VMs with -N- in the name)

     gcloud secrets versions access latest --secret="ado_agent_ssh_key" --project="prj-n-secrets-817e" > azure_staging_ssh
     chmod 600 azure_staging_ssh

   • For Production (VMs with -P- in the name)

     gcloud secrets versions access latest --secret="ado_agent_ssh_key" --project="prj-p-secrets-3c7d" > azure_prod_ssh
     chmod 600 azure_prod_ssh

3. SSH into the VM

   # Staging
   ssh -i azure_staging_ssh -p 2290 HALocalAdmin@IP_GOES_HERE

   # Production
   ssh -i azure_prod_ssh -p 2290 HALocalAdmin@IP_GOES_HERE

Troubleshooting

gcloud secrets permission denied

Devs should automatically have access through the dev@thehelperbees.com Google Group. If individual permissions are needed, add roles/secretmanager.secretAccessor on the appropriate secret in GCP Secret Manager.
